2T/24h Granular Ice Machine

2T/24h Granular Ice Machine

Brand:NANBEI
Model:2T/24h Granular Ice Machine
Application:Laboratory,School,
Product Details

2T/24h Granular Ice Machine


Edible granular ice machine is one type of ice making machines. Because the ice shape is the grain type, so it’s called granular ice. In the market it’s the smallest type of ice, melting resistance best . Suitable for drinking supplies modulation, decoration, food preservation and so on, so it is mostly the edible ice.

  Edible granular ice machine throughout the hotel, bar, banquet hall, restaurants, fast food shops, convenience stores and other places need ice to cold drink , to satisfy every customer need granular ice. The granular ice is crystal clear, clean and sanitary; it is efficient, safety, energy saving and environmental protection, durable, so it’s your best choice of ice


Technical scheme:



NO.

Parameters

Technical data

1

Model

NB2T-R2W

2

Evaporating temp.

-10℃

3

Condenser temp

+40℃

4

Control system

PLC micro-computer control

5

Voltage

220V/3Phase/60Hz

6

Cube ice weight density

500~550kg/m3

7

Power consumption

80KW~85KW/ton

8

Measurement

Cube ice machine

Machine:1750mm x 1510mm x 2040mm

Cube ice

22mm x 22mm x 22mm

or 29mm x 29mm x 22mm

9

Noise

55dB

10

Refrigerant

R22

11

Evaporating temp.

-15℃

12

Condenser temp

+40℃

13

Input water temp.

28℃

14

Ambient temp.

40℃

15

Compressor

Model

Frascold

Brand name

Frascold

Amount

1

Type

Q7-33.1

Power

16.78KW

16

Gear motor

0.75KW

17

Total Power of cooling fan

0.55KW

18

Cooling water pump

2.2KW

19

Power of circulating water pump

0.75KW

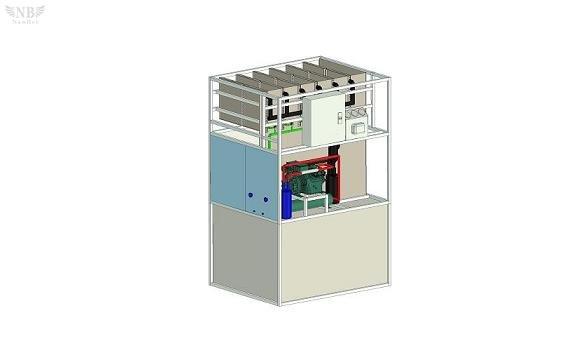

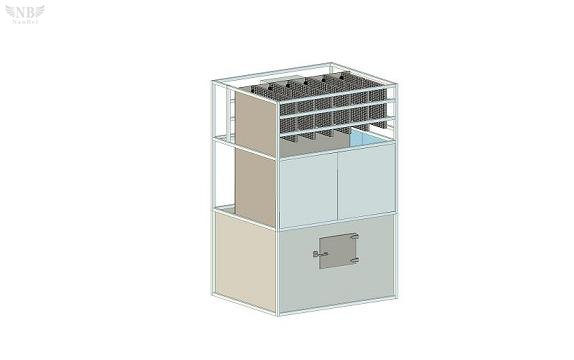

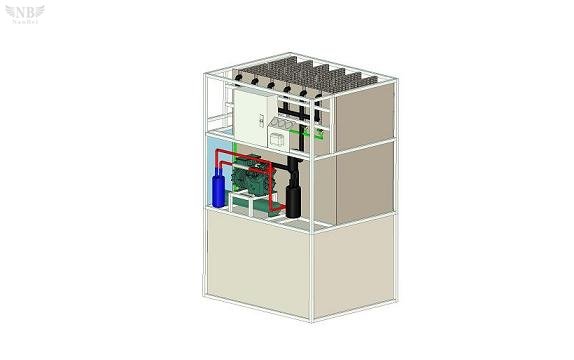

Granular ice machine 3D renderings
